NP-TPMX322LF EDP:386265

Product Information

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Name of Grade PCD
Grade MD220
ANSI NP-TPMX322LF
Sales unit 1
Hand L
Stock
Unit of Length I

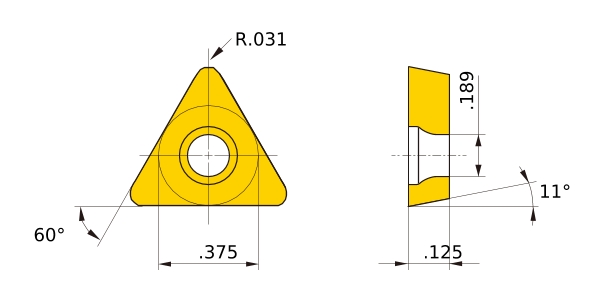

D1 .189
IC .375
EPSR 60°
AN 11°
LE .067
S .125
RE .031
Breaker L-F
2D Model (DXF)
CAD data name Download
TP160308L
CAD

3D Detail Model (STP,STL)
CAD data name Download
TP160308L
CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
