DCGW32.5V5 EDP:392518

Product Information

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Name of Grade Cermet
Grade NX2525
ANSI DCGW32.5V5
Sales unit 10
Hand N
Stock

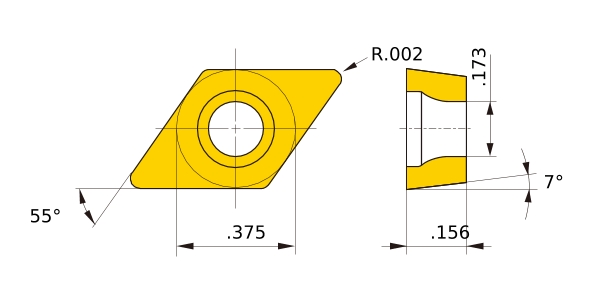

Unit of Length I
D1 .173
IC .375
EPSR 55°
AN
S .156
RE .002
Breaker flat_top
2D Model (DXF)
CAD data name Download
DC11T3V5N
CAD

3D Detail Model (STP,STL)
CAD data name Download
DC11T3V5N
CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
