TPMX1.81.51L EDP:402384

Product Information

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Name of Grade Cermet
Grade NX2525
ANSI TPMX1.81.51L
Sales unit 10
Hand L
Stock

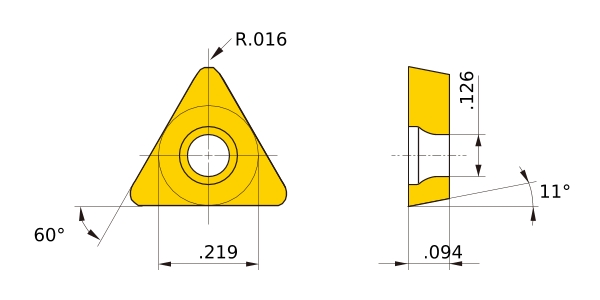

Unit of Length I
D1 .126
IC .219
EPSR 60°
AN 11°
S .094
RE .016
Breaker L
2D Model (DXF)
CAD data name Download
TP090204L
CAD

3D Detail Model (STP,STL)
CAD data name Download
TP090204L
CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
