MGTL43320 EDP:410667

Product Information

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Name of Grade Carbide
Grade UTi20T
ANSI MGTL43320
Sales unit 10
Hand L
Stock

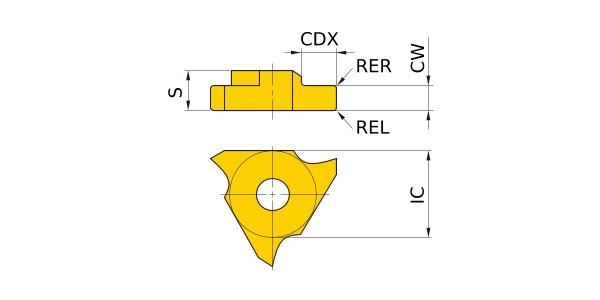

Unit of Length I

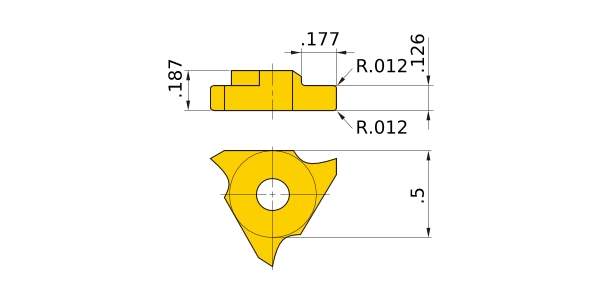

D1 .203
IC .5
CDX .177
CW .126
S .187
REL .012
RER .012
Tolerance CW:±.001
Classification of Grades
Coated・Carbide VP20MF
2D Model (DXF)
CAD data name Download
MGTL43320
CAD

3D Detail Model (STP,STL)
CAD data name Download
MGTL43320
CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
