MTTR435503 EDP:410691

Product Information

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Name of Grade Carbide
Grade UTi20T
ANSI MTTR435503
Sales unit 10
Hand R
Stock
Unit of Length I

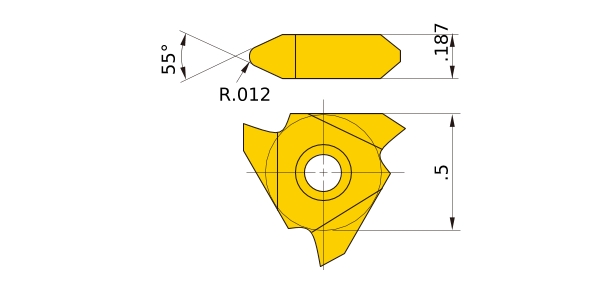

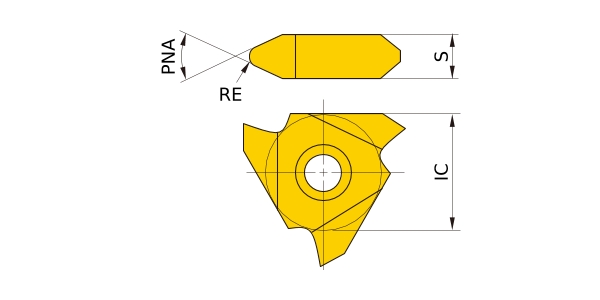

IC .5
PNA 55°
S .187
RE .012
Classification of Grades
Non-coated・Cermet NX2525
Non-coated・Cermet NX55
2D Model (DXF)
CAD data name Download
MTTR435503
CAD

3D Detail Model (STP,STL)
CAD data name Download
MTTR435503
CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
