TPGT321RF EDP:412902

Product Information

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Name of Grade PCD
Grade MD220
ANSI TPGT321RF
Sales unit 1
Hand R
Stock
Unit of Length I

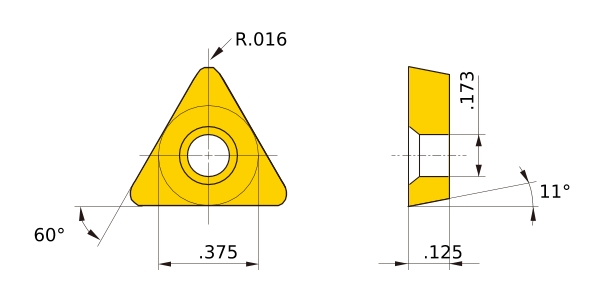

D1 .173
IC .375
B7 20
EPSR 60°
GAN 10°
AN 11°
CDX .079
LE .114
S .125
RE .016
Breaker R-F
2D Model (DXF)
CAD data name Download
TP160304R
CAD

3D Detail Model (STP,STL)
CAD data name Download
TP160304R
CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
