TPGV1.81.50.5LF EDP:412911

Product Information

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Name of Grade PCD
Grade MD220
ANSI TPGV1.81.50.5LF
Sales unit 1
Hand L
Stock

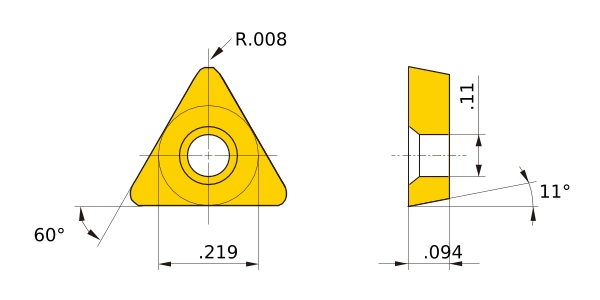

Unit of Length I
D1 .11
IC .219
B7 20
EPSR 60°
GAN 10
AN 11°
CDX .063
LE .106
S .094
RE .008
Breaker L-F
2D Model (DXF)
CAD data name Download
TP090202L
CAD

3D Detail Model (STP,STL)
CAD data name Download
TP090202L
CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
