AJX
(MULTI FUNCTIONAL MILLING)

AJX09R404SA42S EDP:434028

Product Information

  • Economical due to the use of 3 cutting edges.
  • Suitable for high feed cutting.
  • Excellent chip disposal due to the standardization of coolant hole.
  • High rigidity due to the employment of double clamp mechanics.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Sales unit 1
Hand R
Stock
Unit of Length M

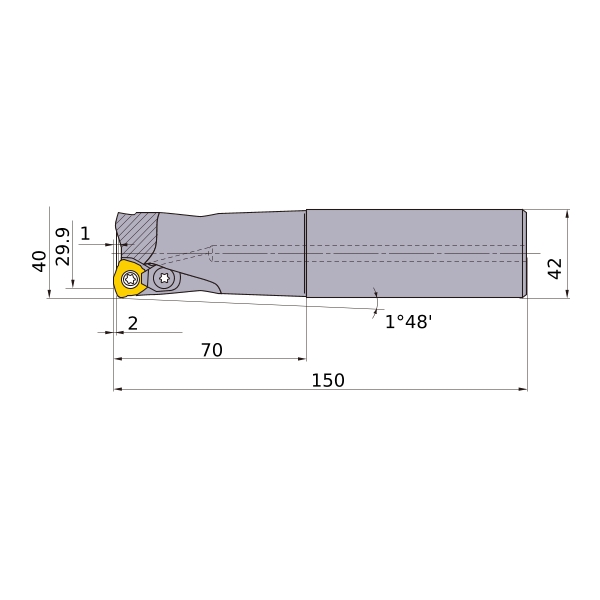

AZ 1
DC 29.9
DCX 40
DCON 42
B2 1°48'
RMPX 1.5
LF 150
LH 70
APMX 2
GAMP +5°
GAMF -5°
Cutting item count: CICT 4
Peripheral effective cutting edge count: ZEFP 4
2D Model (DXF)
CAD data name Download
AJX09R404SA42S
CAD

3D Detail Model (STP,STL)
CAD data name Download
AJX09R404SA42S
CAD

3D Light Model (STP,STL)
CAD data name RE Download
AJX09R404SA42S_MR2
2 CAD CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
