AJX
(MULTI FUNCTIONAL MILLING)

AJX08R253AM1235 EDP:434159

Product Information

  • Economical due to the use of 3 cutting edges.
  • Suitable for high feed cutting.
  • Excellent chip disposal due to the standardization of coolant hole.
  • High rigidity due to the employment of double clamp mechanics.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Sales unit 1
Hand R
Stock
Unit of Length M

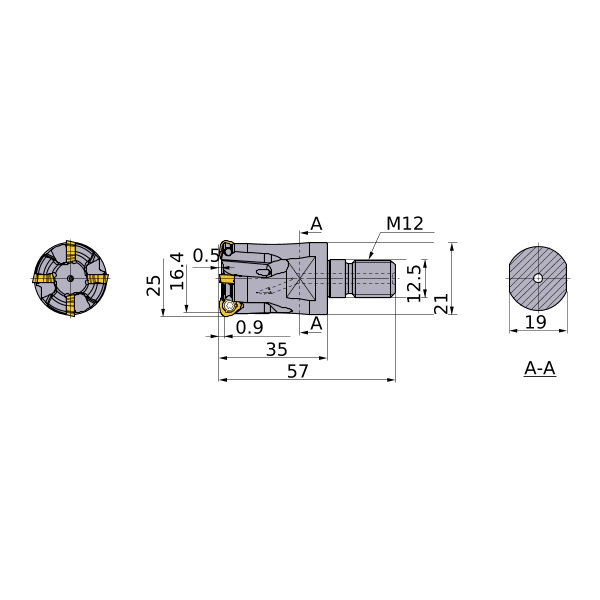

AZ 0.5
DC 16.4
DCX 25
DCON 12.5
DCSFMS 21
RMPX 2
LF 35
OAL 57
S10 19
APMX 0.9
GAMP +4°
GAMF -6°
WT 0.1
CRKS M12
Cutting item count: CICT 3
Peripheral effective cutting edge count: ZEFP 3
2D Model (DXF)
CAD data name Download
AJX08R253AM1235
CAD

3D Detail Model (STP,STL)
CAD data name Download
AJX08R253AM1235
CAD

3D Light Model (STP,STL)
CAD data name RE Download
AJX08R253AM1235_MR2
2 CAD CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
