MGH
（MG Holder）

MGHL2525M4333 EDP:441527

Product Information

  • Clamp-on type
  • Positive insert suffers from negligible chattering and thus produces good finished surface.
  • Groove width 1.25 - 6.0mm

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR

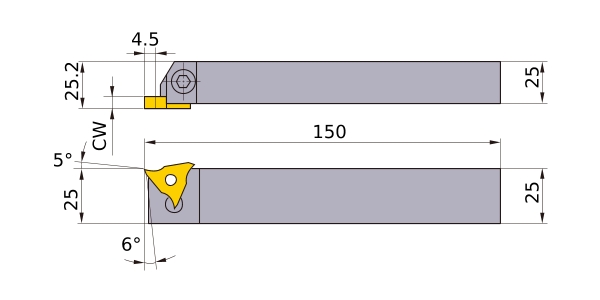

Hand L
Unit of Length M
B 25
LF 150
CDX 4.5
WF 25.2
H 25
HF 25
Peripheral effective cutting edge count: ZEFP 1
Show more

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
