SRF


SRFH25S25MW EDP:448462

Product Information

  • S-shaped cutting edge provides sharpness similar to that of solid ball nose end mills.
  • Highly accurate corner radius tolerance allows for high precision finishing.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Sales unit 1
Hand R
Stock
Unit of Length M

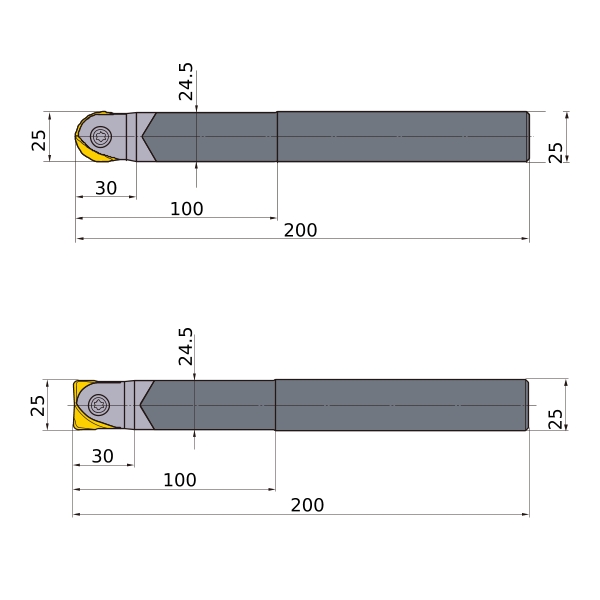

DC 25
DCON 25
BD 24.5
LF 200
LH 100
LU 30
Cutting item count: CICT 1
Peripheral effective cutting edge count: ZEFP 2
2D Model (DXF)
CAD data name Download
SRFH25S25MW_SRBT25
CAD
SRFH25S25MW_SRFT25
CAD
SRFH25S25MW_SUFT25R05
CAD
SRFH25S25MW_SUFT25R10
CAD
SRFH25S25MW_SUFT25R20
CAD
SRFH25S25MW_SUFT25R30
CAD

3D Detail Model (STP,STL)
CAD data name Download
SRFH25S25MW
CAD

3D Light Model (STP,STL)
CAD data name RE Download
SRFH25S25MW_MR0_5
0.5 CAD CAD
SRFH25S25MW_MR1
1 CAD CAD
SRFH25S25MW_MR12_5
12.5 CAD CAD
SRFH25S25MW_MR2
2 CAD CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
