AQX


AQXR212M10A30 EDP:453886

Product Information

  • Air coolant through.
  • The center bottom cutting edge enables drilling and end milling without prepared hole.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Hand R
Stock
Unit of Length M

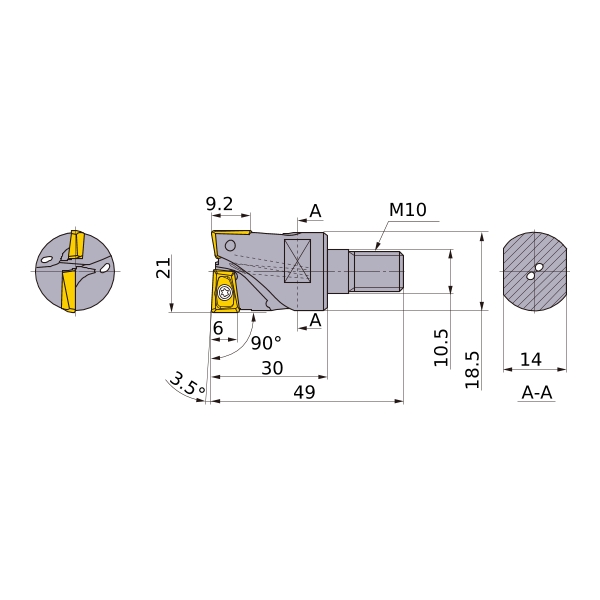

A3 6
DC 21
DCON 10.5
DCSFMS 18.5
KAPR 90°
LF 30
OAL 49
S10 14
APMX 9.2
WT 0.2
CRKS M10
Cutting item count: CICT 2
Peripheral effective cutting edge count: ZEFP 2
2D Model (DXF)
CAD data name Download
AQXR212M10A30
CAD
