SRM2


SRM2300AM16L60 EDP:454141

Product Information

  • Through coolant hole type.
  • Suitable for roughing to semi-finishing of small and medium molds.
  • Low resistance inserts.
  • High rigidity body design.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Sales unit 1
Hand R
Stock
Unit of Length M

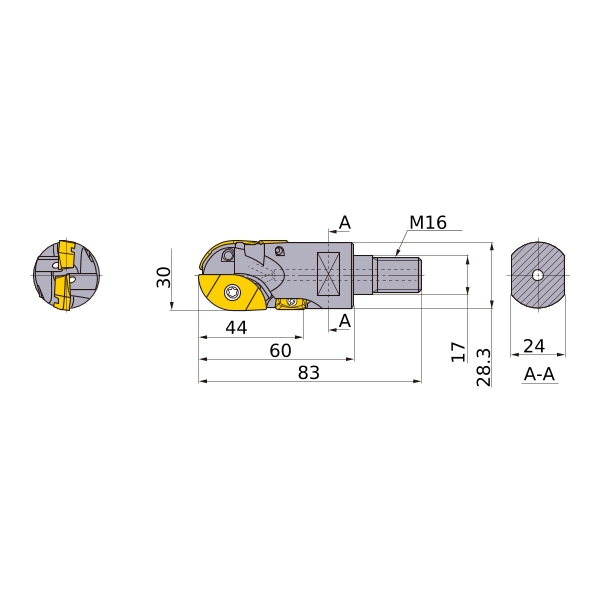

DC 30
DCON 17
DCSFMS 28.3
LF 60
OAL 83
S10 24
APMX 44
CRKS M16
Cutting item count: CICT 4
Peripheral effective cutting edge count: ZEFP 2
2D Model (DXF)
CAD data name Download
SRM2300AM16L60
CAD

3D Detail Model (STP,STL)
CAD data name Download
SRM2300AM16L60
CAD

3D Light Model (STP,STL)
CAD data name RE Download
SRM2300AM16L60_MR15
15 CAD CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
