TAFS_TAFM_TAFL


TAFL1700F25 EDP:456665

Product Information

  • High rigidity holder.
  • Economical due to the use of 4 cutting edges.
  • Various grades and chip breakers.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Stock
Unit of Length M

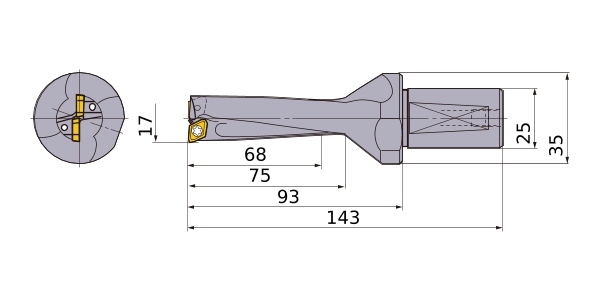

DC 17
DCON 25
DCSFMS 35
OAL 143
LPR 93
LU 68
LCF 75
LBX 75
ld 4
CRKS PT1/8
Cutting item count: CICT 2
Effective Cutting Edge 2
Type of Coolant Internal
Show more

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.

  • Recommended Cutting Condition
