MNS1220LB EDP:464083

Product Information

  • Four coolant holes is ideal for MQL applications

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade TF15
Sales unit 1
Stock
Unit of Length M

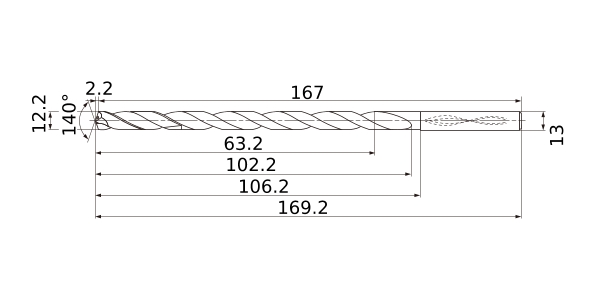

DC 12.2
DCON 13
SIG 140°
LF 167
OAL 169.2
LH 106.2
LU 63.2
LCF 102.2
FHA 30°
ld 5
PL 2.2
Effective Cutting Edge 2
Max. Cutting EdgeDiameter Tolerance 0
Min. Cutting EdgeDiameter Tolerance -0.027
Type of Coolant Internal
2D Model (DXF)
CAD data name Download
MNS1220LB
CAD
