MNS1370LB EDP:464235

Product Information

  • Four coolant holes is ideal for MQL applications

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade TF15
Sales unit 1
Stock
Unit of Length M

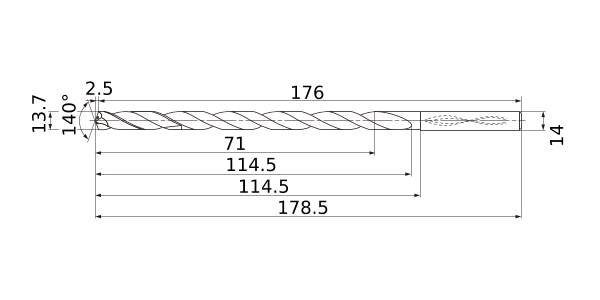

DC 13.7
DCON 14
SIG 140°
LF 176
OAL 178.5
LH 114.5
LU 71
LCF 114.5
FHA 30°
ld 5
PL 2.5
Effective Cutting Edge 2
Max. Cutting EdgeDiameter Tolerance 0
Min. Cutting EdgeDiameter Tolerance -0.027
Type of Coolant Internal
2D Model (DXF)
CAD data name Download
MNS1370LB
CAD
