MNS0360X10DB EDP:464331

Product Information

  • Four coolant holes is ideal for MQL applications

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade TF15
Sales unit 1
Stock
Unit of Length M

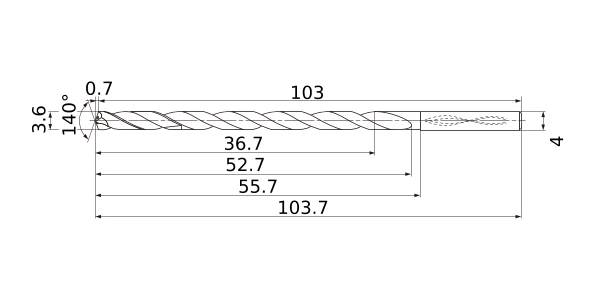

DC 3.6
DCON 4
SIG 140°
LF 103
OAL 103.7
LH 55.7
LU 36.7
LCF 52.7
FHA 30°
ld 10
PL 0.7
Effective Cutting Edge 2
Max. Cutting EdgeDiameter Tolerance 0
Min. Cutting EdgeDiameter Tolerance -0.018
Type of Coolant Internal
