MNS1200X10DB EDP:465174

Product Information

  • Four coolant holes is ideal for MQL applications

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade TF15
Sales unit 1
Stock
Unit of Length M

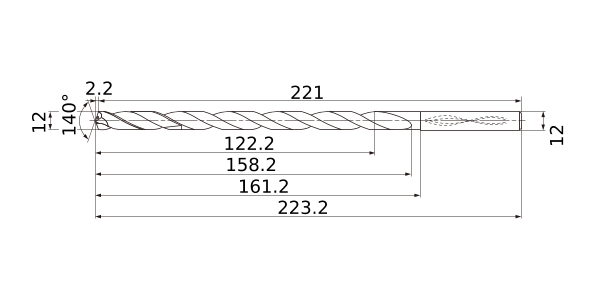

DC 12
DCON 12
SIG 140°
LF 221
OAL 223.2
LH 161.2
LU 122.2
LCF 158.2
FHA 30°
ld 10
PL 2.2
Effective Cutting Edge 2
Max. Cutting EdgeDiameter Tolerance 0
Min. Cutting EdgeDiameter Tolerance -0.027
Type of Coolant Internal
