MNS
（WSTAR）

MNS1300X10DB EDP:465271

Product Information

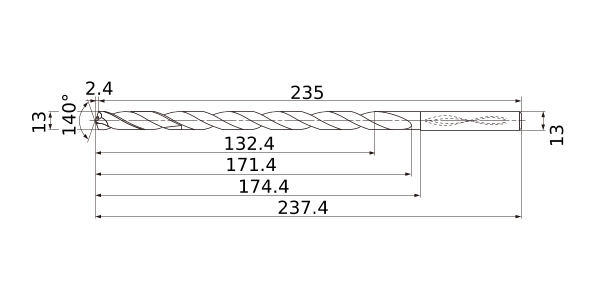

  • Four coolant holes is ideal for MQL applications

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade TF15
Sales unit 1
Stock
Unit of Length M
DC 13
DCON 13
SIG 140°
LF 235
OAL 237.4
LH 174.4
LU 132.4
LCF 171.4
FHA 30°
ld 10
PL 2.4
Effective Cutting Edge 2
Max. Cutting EdgeDiameter Tolerance 0
Min. Cutting EdgeDiameter Tolerance -0.027
Type of Coolant Internal
