MWS
（WSTAR）

MWS0260X30DB EDP:475268

Product Information

  • For high accuracy and efficient drilling of steels, carbon steels and difficult-to-cut materials.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade VP15TF
Sales unit 1
Stock
Unit of Length M

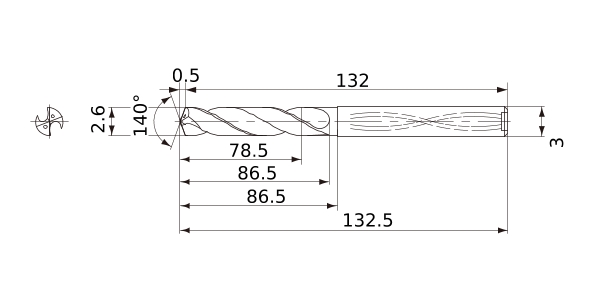

DC 2.6
DCON 3
SIG 140°
LF 132
OAL 132.5
LH 86.5
LU 78.5
LCF 86.5
FHA 30°
ld 30
PL 0.5
Effective Cutting Edge 2
Max. Cutting EdgeDiameter Tolerance 0
Min. Cutting EdgeDiameter Tolerance -0.014
Type of Coolant Internal
