MHS
（WSTAR）

MHS0300L040B EDP:476105

Product Information

  • High backling strength and unique double margin.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade VP15TF
Sales unit 1
Stock
Unit of Length M

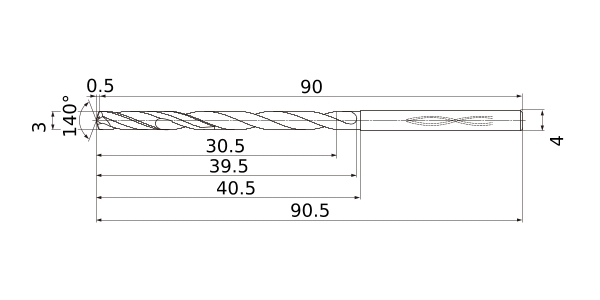

DC 3
DCON 4
SIG 140°
LF 90
OAL 90.5
LH 40.5
LU 30.5
LCF 39.5
FHA 25°
ld 10
PL 0.5
Effective Cutting Edge 2
Max. Cutting EdgeDiameter Tolerance 0.01
Min. Cutting EdgeDiameter Tolerance -0.002
Type of Coolant Internal
2D Model (DXF)
CAD data name Download
MHS0300L040B
CAD
