MHS
（WSTAR）

MHS0300L090B EDP:476121

Product Information

  • High backling strength and unique double margin.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade VP15TF
Sales unit 1
Stock
Unit of Length M
DC 3
DCON 4

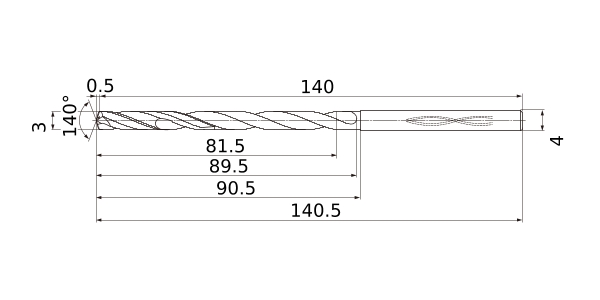

SIG 140°
LF 140
OAL 140.5
LH 90.5
LU 81.5
LCF 89.5
FHA 25°
ld 27
PL 0.5
Effective Cutting Edge 2
Max. Cutting EdgeDiameter Tolerance 0.01
Min. Cutting EdgeDiameter Tolerance -0.002
Type of Coolant Internal
2D Model (DXF)
CAD data name Download
MHS0300L090B
CAD
