MHS
（WSTAR）

MHS1050L040B EDP:480411

Product Information

  • High backling strength and unique double margin.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade VP15TF
Sales unit 1
Stock
Unit of Length M

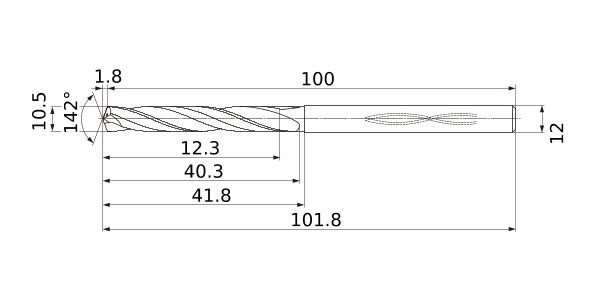

DC 10.5
DCON 12
SIG 142°
LF 100
OAL 101.8
LH 41.8
LU 12.3
LCF 40.3
FHA 25°
ld 1
PL 1.8
Effective Cutting Edge 2
Max. Cutting EdgeDiameter Tolerance 0.01
Min. Cutting EdgeDiameter Tolerance -0.008
Type of Coolant Internal
2D Model (DXF)
CAD data name Download
MHS1050L040B
CAD
