ASX445
(GENERAL CUTTING)

ASX445R31528P EDP:490441

Product Information

  • High rigidity due to employment of a carbide shim.
  • Screw-on type.
  • A wide range of chip breakers.
  • Precise but inexpensive molded type 20° positive insert.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Sales unit 1
Hand R
Stock
Unit of Length M

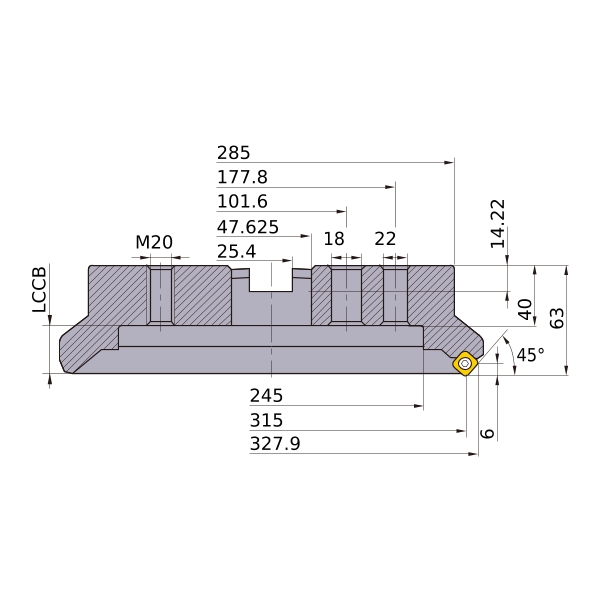

DC 315
DCX 327.9
DCON 47.625
DCSFMS 285
DAH1 18
DAH2 22
DCCB 245
KAPR 45°
L8 14.22
LF 63
CBDP 40
KWW 25.4
APMX 6
GAMP +23°
GAMF -10°
WT 21.8
CRKS M20
DBC1 101.6
DBC2 177.8
Peripheral effective cutting edge count: ZEFP 28
RPMX 6500
2D Model (DXF)
CAD data name Download
ASX445R31528P
CAD

3D Detail Model (STP,STL)
CAD data name Download
ASX445R31528P
CAD

3D Light Model (STP,STL)
CAD data name RE Download
ASX445R31528P_MR1_5
1.5 CAD CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
