CB
(Micro Mini Twin)

CB05RS-02 EDP:492316

Product Information

  • Solid carbide type with 2 cutting edges.
  • Each boring bar comes in two types, with or without breaker.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Name of Grade Carbide
Grade VP15TF
Sales unit 1
Hand R
Stock
Unit of Length M

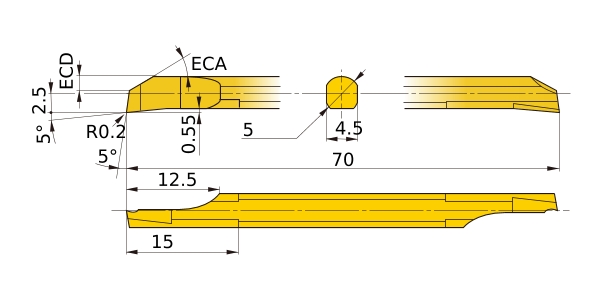

DMIN 5.2
DCON 5
L20 12.5
LF 70
LDRED 15
WF 2.5
H 4.5
WF2 0.55
RE 0.2
Peripheral effective cutting edge count: ZEFP 1
Classification of Grades
Non-coated・Carbide TF15
2D Model (DXF)
CAD data name Download
CB05RS-02
CAD

3D Detail Model (STP,STL)
CAD data name Download
CB05RS-02
CAD CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
