AHX640W
(HIGH FEED CUTTING FOR CAST IRON)

AHX640WL16016F EDP:505287

Product Information

  • Heptagonal double-sided insert.
  • Economical 14 corner use.
  • Fine pitch design allows high feed milling.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Sales unit 1
Hand L
Stock
Unit of Length M

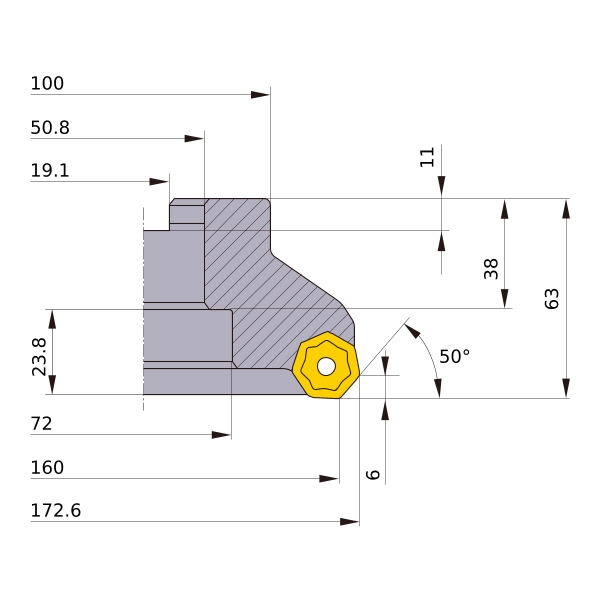

DC 160
DCX 172.6
DCON 50.8
DCSFMS 100
DCCB 72
KAPR 50°
L8 11
LF 63
CBDP 38
LCCB 23.8
KWW 19.1
APMX 6
GAMP -6°
GAMF -4°
WT 5.6
Peripheral effective cutting edge count: ZEFP 16
2D Model (DXF)
CAD data name Download
AHX640WL16016F
CAD

3D Detail Model (STP,STL)
CAD data name Download
AHX640WL16016F
CAD

3D Light Model (STP,STL)
CAD data name RE Download
AHX640WL16016F_MR0_8
0.8 CAD CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
