AHX640W
(HIGH FEED CUTTING FOR CAST IRON)

AHX640WL20020K EDP:505295

Product Information

  • Heptagonal double-sided insert.
  • Economical 14 corner use.
  • Fine pitch design allows high feed milling.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Sales unit 1
Hand L
Stock
Unit of Length M

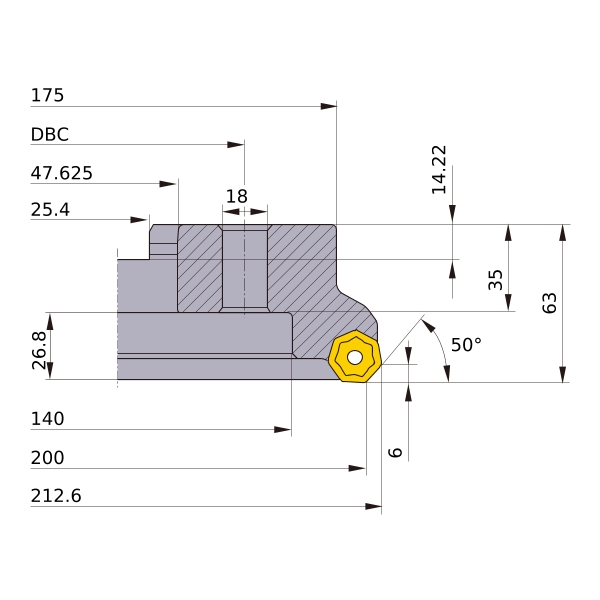

DC 200
DCX 212.6
DCON 47.625
DCSFMS 175
DAH 18
DCCB 140
KAPR 50°
L8 14.22
LF 63
CBDP 35
LCCB 26.8
KWW 25.4
APMX 6
GAMP -6°
GAMF -4°
WT 9
Peripheral effective cutting edge count: ZEFP 20
2D Model (DXF)
CAD data name Download
AHX640WL20020K
CAD

3D Detail Model (STP,STL)
CAD data name Download
AHX640WL20020K
CAD

3D Light Model (STP,STL)
CAD data name RE Download
AHX640WL20020K_MR0_8
0.8 CAD CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
