VAPDSSUS
（Short, High precision, For stainless steel）
VAPDSSUSD0490 EDP:525018
Product Information
- Our new design and the violet coating enable high efficiency drilling and long tool life for processing stainless steels.

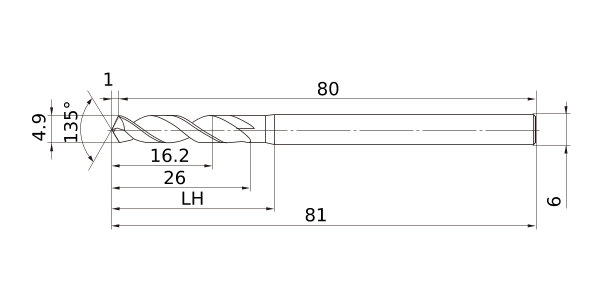

| Diameter (Unit) | |
|---|---|
| Sales unit | 1 |
| Unit of Length | M |
| DC | 4.9 |
| DCON | 6 |
| SIG | 135° |
| LF | 80 |
| OAL | 81 |
| LU | 16.2 |
| LCF | 26 |
| PL | 1 |
| Effective Cutting Edge | 2 |
| Max. Cutting EdgeDiameter Tolerance | 0 |
| Min. Cutting EdgeDiameter Tolerance | -0.018 |
| Type of Coolant | External |
