VFHVRB
(4 flute, Corner radius, Short cut length, Irregular helix flutes)

VFHVRBD0800R10N040 EDP:528411

Product Information

  • Impact Miracle corner radius end mill for high feed and efficient machining.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Sales unit 1
Stock
Unit of Length M

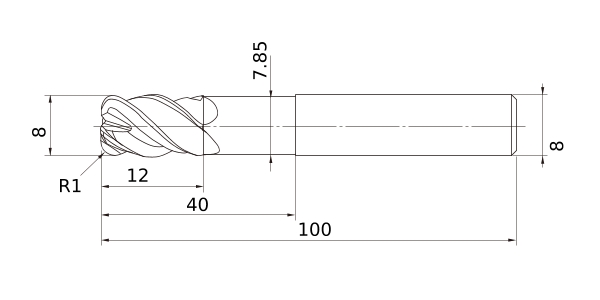

DC 8
DCON 8
DN 7.85
LF 100
LU 40
APMX 12
RE 1
Peripheral effective cutting edge count: ZEFP 4
R Tolerance - -0.007
R Tolerance + 0.007
Max. Cutting EdgeDiameter Tolerance 0
Min. Cutting EdgeDiameter Tolerance -0.02
Coated VF
2D Model (DXF)
CAD data name Download
VFHVRBD0800R10N040
CAD

3D Light Model (STP,STL)
CAD data name Download
VFHVRBD0800R10N040
CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
