MMTE_INCH


MMTER-124 EDP:541940

Product Information

  • Available with a wiper cutting edge to provide a precise thread geometry.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
ANSI MMTER124C
Sales unit 1
Hand R
Stock

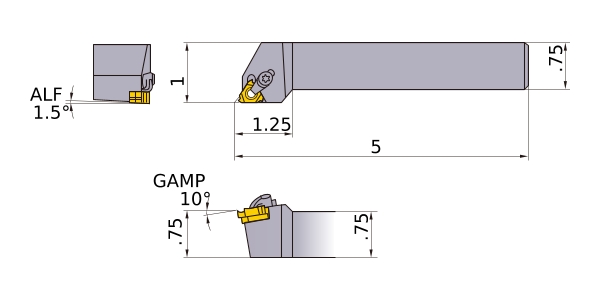

Unit of Length I
B .75
LF 5
LH 1.25
WF 1
H .75
HF .75
Peripheral effective cutting edge count: ZEFP 1
2D Model (DXF)
CAD data name Download
MMTER-124
CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
