MMS
（WSTAR）

MMS0870X3DB EDP:553908

Product Information

  • New grade DP7020 and a unique margin, developed specifically for stainless steel, complement high flow coolant holes.
  • Long drill life and high efficiency drilling of holes in stainless steel.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade DP7020
Sales unit 1
Stock
Unit of Length M

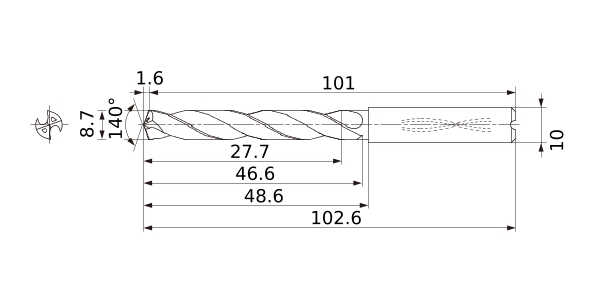

DC 8.7
DCON 10
SIG 140°
LF 101
OAL 102.6
LH 48.6
LU 27.7
LCF 46.6
FHA 30°
ld 3
PL 1.6
Effective Cutting Edge 2
Max. Cutting EdgeDiameter Tolerance 0
Min. Cutting EdgeDiameter Tolerance -0.022
Type of Coolant Internal
2D Model (DXF)
CAD data name Download
MMS0870X3DB
CAD
Disclaimer
