GY1B0220D020N EDP:599084

Product Information

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Name of Grade Cermet
Grade NX2525
ANSI GY1B0220D020N
Sales unit 10
Hand N
Stock

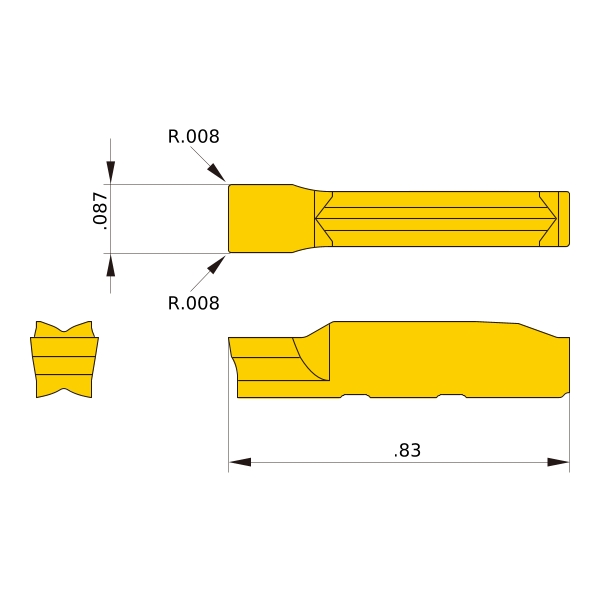

Unit of Length I
L .83
CW .087
REL .008
RER .008
Tolerance CW:±.0039
Classification of Grades
Non-coated・Carbide RT9010
Non-coated・Carbide RT9020
2D Model (DXF)
CAD data name Download
GY1B0220D020N
CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
