MMS0953X5D100 EDP:601981

Product Information

  • New grade DP7020 and a unique margin, developed specifically for stainless steel, complement high flow coolant holes.
  • Long drill life and high efficiency drilling of holes in stainless steel.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade DP7020
Sales unit 1
Stock
Unit of Length I

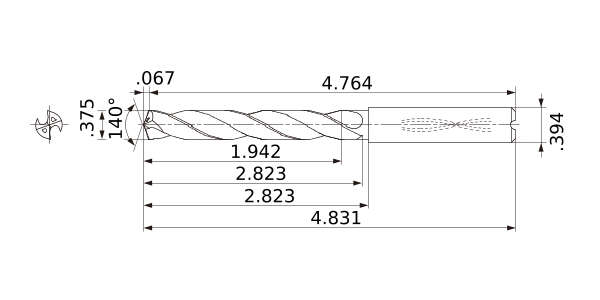

DC .375
DCON .394
SIG 140°
LF 4.764
OAL 4.831
LH 2.823
LU 1.942
LCF 2.823
FHA 30°
ld 5
PL .067
Effective Cutting Edge 2
Max. Cutting EdgeDiameter Tolerance 0
Min. Cutting EdgeDiameter Tolerance -.0009
Type of Coolant Internal
2D Model (DXF)
CAD data name Download
MMS0953X5D100
CAD
