MMS1667X5D180 EDP:602116

Product Information

  • New grade DP7020 and a unique margin, developed specifically for stainless steel, complement high flow coolant holes.
  • Long drill life and high efficiency drilling of holes in stainless steel.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade DP7020
Sales unit 1
Stock
Unit of Length I

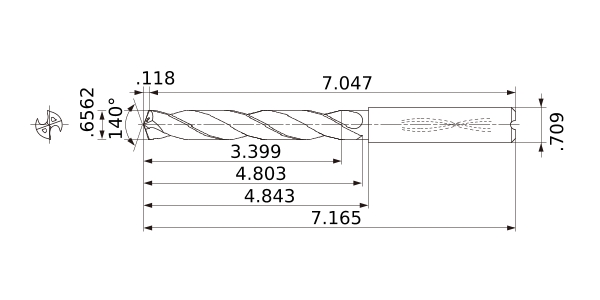

DC .6562
DCON .709
SIG 140°
LF 7.047
OAL 7.165
LH 4.843
LU 3.399
LCF 4.803
FHA 30°
ld 5
PL .118
Effective Cutting Edge 2
Max. Cutting EdgeDiameter Tolerance 0
Min. Cutting EdgeDiameter Tolerance -.0011
Type of Coolant Internal
2D Model (DXF)
CAD data name Download
MMS1667X5D180
CAD
