MMS_INCH
（WSTAR）

MMS1826X5D200 EDP:602159

Product Information

  • New grade DP7020 and a unique margin, developed specifically for stainless steel, complement high flow coolant holes.
  • Long drill life and high efficiency drilling of holes in stainless steel.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade DP7020
Sales unit 1
Stock
Unit of Length I

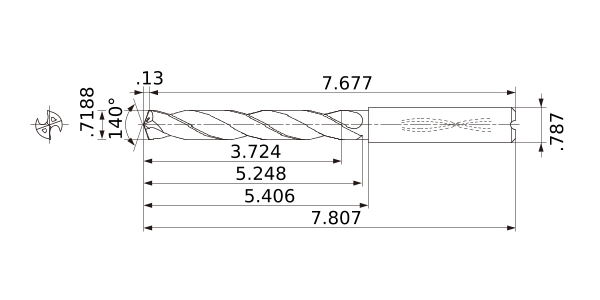

DC .7188
DCON .787
SIG 140°
LF 7.677
OAL 7.807
LH 5.406
LU 3.724
LCF 5.248
FHA 30°
ld 5
PL .13
Effective Cutting Edge 2
Max. Cutting EdgeDiameter Tolerance 0
Min. Cutting EdgeDiameter Tolerance -.0013
Type of Coolant Internal
2D Model (DXF)
CAD data name Download
MMS1826X5D200
CAD
