E-STUP_C_INCH
（Coolant Through Carbide Boring Bars）

E05K-STUPL1.5 EDP:62024716

Product Information

  • Two wall pocket.
  • 7° and 11° positive insert, low cutting force.
  • Screw-on type.
  • Carbide shanks are stocked in various diameters.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
ANSI E05K-STUPL1.5
Sales unit 1
Hand L
Stock
Unit of Length I

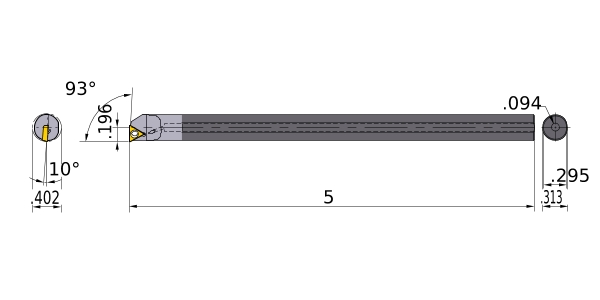

DMIN .402
DCON .313
CNT .094
KAPR 93°
LF 5
WF .196
H .295
GAMF 10°
WT 0.21
RE .016
Peripheral effective cutting edge count: ZEFP 1
Insert Number TP__1.51.5
Show more

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
