E-SDQC_C_INCH
（Coolant Through Carbide Boring Bars）

E08M-SDQCL2 EDP:62024976

Product Information

  • Two wall pocket.
  • 7° positive insert, low cutting force.
  • Screw-on type.
  • Carbide shanks are stocked in various diameters.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
ANSI E08M-SDQCL2
Sales unit 1
Hand L
Stock

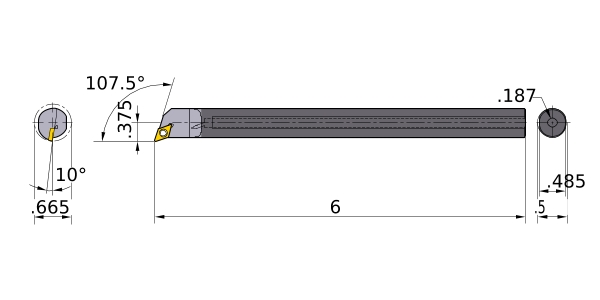

Unit of Length I
DMIN .665
DCON .5
CNT .187
KAPR 107.5°
LF 6
WF .375
H .485
GAMF 10°
WT 0.51
RE .016
Peripheral effective cutting edge count: ZEFP 1
Insert Number DC__21.5
Show more

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
