E-SCLP_C_INCH
（Coolant Through Carbide Boring Bars）

E10S-SCLPR3 EDP:62025287

Product Information

  • Two wall pocket.
  • 7° and 11° positive insert, low cutting force.
  • Screw-on type.
  • Carbide shanks are stocked in various diameters.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
ANSI E10S-SCLPR3
Sales unit 1
Hand R
Stock

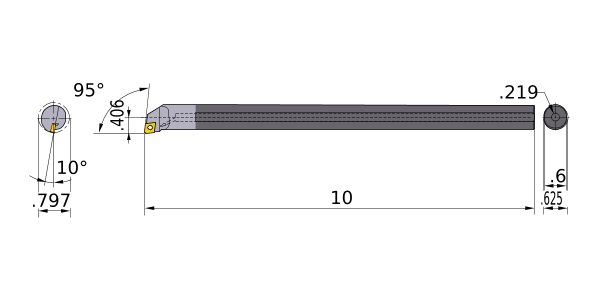

Unit of Length I
DMIN .797
DCON .625
CNT .219
KAPR 95°
LF 10
WF .406
H .6
GAMF 10°
WT 1.3
RE .031
Peripheral effective cutting edge count: ZEFP 1
Insert Number CP__32.5
Show more

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
