E-SVUC_C_INCH
（Coolant Through Carbide Boring Bars）

E16T-SVUCL3 EDP:62025676

Product Information

  • Two wall pocket.
  • 7° positive insert, low cutting force.
  • Screw-on type.
  • Carbide shanks are stocked in various diameters.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
ANSI E16T-SVUCL3
Sales unit 1
Hand L
Stock

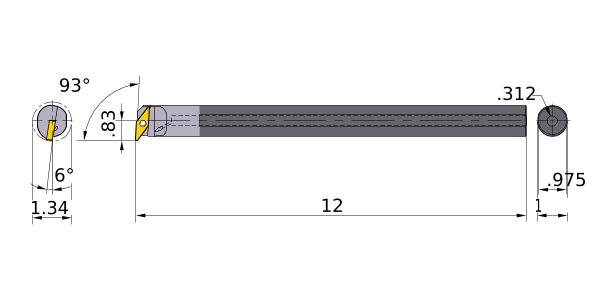

Unit of Length I
DMIN 1.34
DCON 1
CNT .312
KAPR 93°
LF 12
WF .83
H .975
GAMF 6°
WT 5
RE .031
Peripheral effective cutting edge count: ZEFP 1
Insert Number VC__33
Show more

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
