MVX


MVX1950X6F25 EDP:653722

Product Information

  • Ideal combination of outer CVD insert and inner PVD insert.
  • High rigidity body that enabled L/D=6 deep hole machining.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Sales unit 1
Stock
Unit of Length M

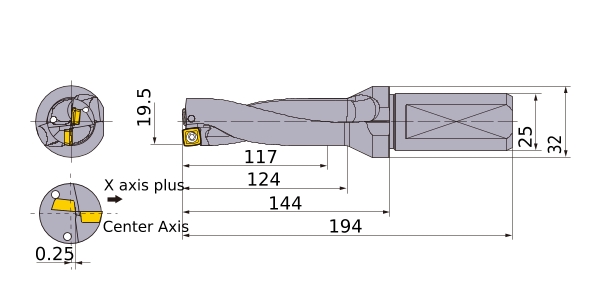

DC 19.5
DCON 25
DCSFMS 32
OAL 194
LPR 144
LU 117
S10 0.25
LBX 124
ld 6
Cutting item count: CICT 2
Peripheral effective cutting edge count: ZEFP 2
Effective Cutting Edge 1
Type of Coolant Internal
2D Model (DXF)
CAD data name Download
MVX1950X6F25
CAD

3D Detail Model (STP,STL)
CAD data name Download
MVX1950X6F25
CAD

3D Light Model (STP,STL)
CAD data name RE Download
MVX1950X6F25_MR0_5
0.5 CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
