MVX


MVX2000X5F25 EDP:653765

Product Information

  • Ideal combination of outer CVD insert and inner PVD insert.
  • High rigidity body that enabled L/D=6 deep hole machining.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Sales unit 1
Stock

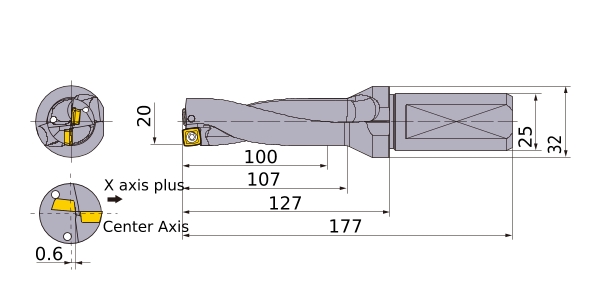

Unit of Length M
DC 20
DCON 25
DCSFMS 32
OAL 177
LPR 127
LU 100
S10 0.6
LBX 107
ld 5
Cutting item count: CICT 2
Peripheral effective cutting edge count: ZEFP 2
Effective Cutting Edge 1
Type of Coolant Internal
2D Model (DXF)
CAD data name Download
MVX2000X5F25
CAD

3D Detail Model (STP,STL)
CAD data name Download
MVX2000X5F25
CAD

3D Light Model (STP,STL)
CAD data name RE Download
MVX2000X5F25_MR0_5
0.5 CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
