MVS
（WSTAR）

MVS1280X03S130 EDP:696896

Product Information

  • New grade DP1020 offers long tool life for a wide range of work materials.
  • Unique coolant supply technology, TRI-cooling offers high machining efficiency. (on drills over ø6)

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade DP1020
Sales unit 1
Stock
Unit of Length M

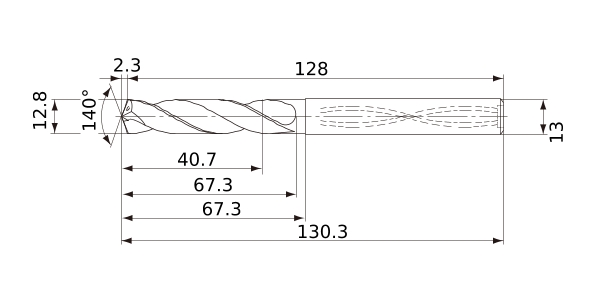

DC 12.8
DCON 13
SIG 140°
LF 128
OAL 130.3
LH 67.3
LU 40.7
LCF 67.3
FHA 30°
ld 3
PL 2.3
Effective Cutting Edge 2
Max. Cutting EdgeDiameter Tolerance 0
Min. Cutting EdgeDiameter Tolerance -0.027
Type of Coolant Internal
2D Model (DXF)
CAD data name Download
MVS1280X03S130
CAD
