| Diameter (Unit) | |
|---|---|
| Sales unit | 1 |
| Hand | L |
| Stock |
|
| Unit of Length | I |

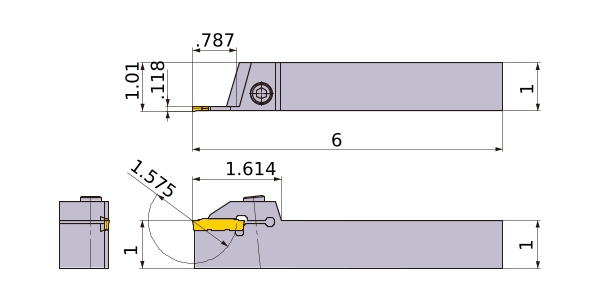

| CUTDIA | 1.575 |
| B | 1 |
| LF | 6 |
| LH | 1.614 |
| CDX | .787 |
| WF | 1.01 |
| H | 1 |
| HF | 1 |
| CW | .118 |
| 2D Model (DXF) | |
|---|---|
| CAD data name | Download |
|
GYQLUS16D00-F20
|
|
| 3D Detail Model (STP,STL) | |
|---|---|
| CAD data name | Download |
|
GYQLUS16D00-F20
|
|
| 3D Light Model (STP,STL) | ||
|---|---|---|
| CAD data name | RE | Download |
|
GYQLUS16D00-F20_CW0_118_IR0_008
|
.008 |
|
|
GYQLUS16D00-F20_CW0_118_IR0_059
|
.059 |
|
|
GYQLUS16D00-F20_CW0_125_IR0_008
|
.008 |
|
|
GYQLUS16D00-F20_CW0_125_IR0_063
|
.063 |
|
Stock
:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
