GYQRUS16D00-F06 EDP:821837

Product Information

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Sales unit 1
Hand R
Stock
Unit of Length I

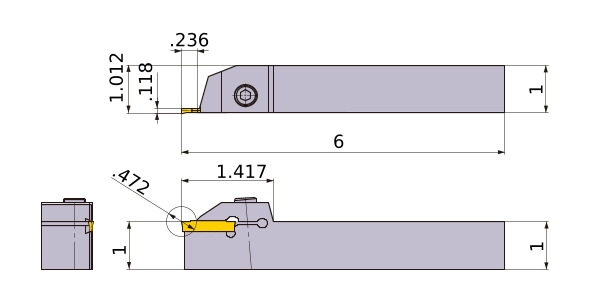

CUTDIA .472
B 1
LF 6
LH 1.417
CDX .236
WF 1.012
H 1
HF 1
CW .118
2D Model (DXF)
CAD data name Download
GYQRUS16D00-F06
CAD

3D Detail Model (STP,STL)
CAD data name Download
GYQRUS16D00-F06
CAD

3D Light Model (STP,STL)
CAD data name RE Download
GYQRUS16D00-F06_CW0_118_IR0_008
.008 CAD
GYQRUS16D00-F06_CW0_118_IR0_059
.059 CAD
GYQRUS16D00-F06_CW0_125_IR0_008
.008 CAD
GYQRUS16D00-F06_CW0_125_IR0_063
.063 CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
