| Diameter (Unit) | |
|---|---|
| Sales unit | 1 |
| Hand | R |
| Stock |
|
| Unit of Length | I |

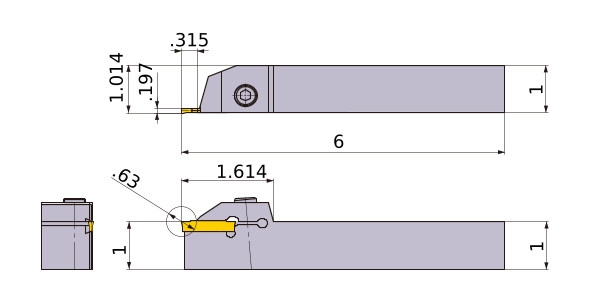

| CUTDIA | .63 |
| B | 1 |
| LF | 6 |
| LH | 1.614 |
| CDX | .315 |
| WF | 1.014 |
| H | 1 |
| HF | 1 |
| CW | .197 |
| 2D Model (DXF) | |
|---|---|
| CAD data name | Download |
|
GYQRUS16D00-H08
|
|
| 3D Detail Model (STP,STL) | |
|---|---|
| CAD data name | Download |
|
GYQRUS16D00-H08
|
|
| 3D Light Model (STP,STL) | ||
|---|---|---|
| CAD data name | RE | Download |
|
GYQRUS16D00-H08_CW0_187_IR0_016
|
.016 |
|
|
GYQRUS16D00-H08_CW0_187_IR0_094
|
.094 |
|
|
GYQRUS16D00-H08_CW0_197_IR0_016
|
.016 |
|
|
GYQRUS16D00-H08_CW0_197_IR0_098
|
.098 |
|
Stock
:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
