MP2XLB
（End mill, Short cut length, 2 flute, Long neck）

MP2XLBR0250N350 EDP:831752

Product Information

  • 2-flute long neck ball nose end mills. Excellent performance for a wide range of workpiece materials such as carbon steel, alloy steel and hardened steel.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Stock

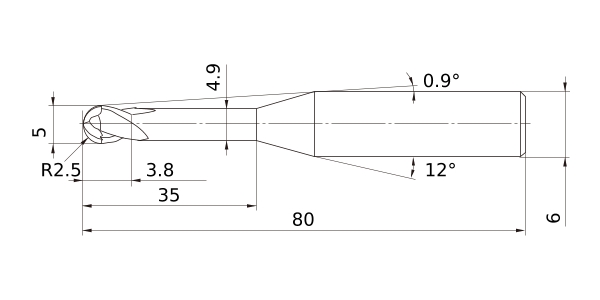

Unit of Length M
DC 5
DCON 6
DN 4.9
B2 0.9°
BHTA2 12°
LF 80
LU 35
APMX 3.8
FHA 30°
RE 2.5
Peripheral effective cutting edge count: ZEFP 2
R Tolerance - -0.005
R Tolerance + 0.005
Coated MS+
