WSX445_MM
(GENERAL CUTTING)

WSX445-200C08NR EDP:834793

Product Information

  • Double sided Z Geometry.
  • Smooth chip discharge.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Sales unit 1
Hand R
Stock
Unit of Length M

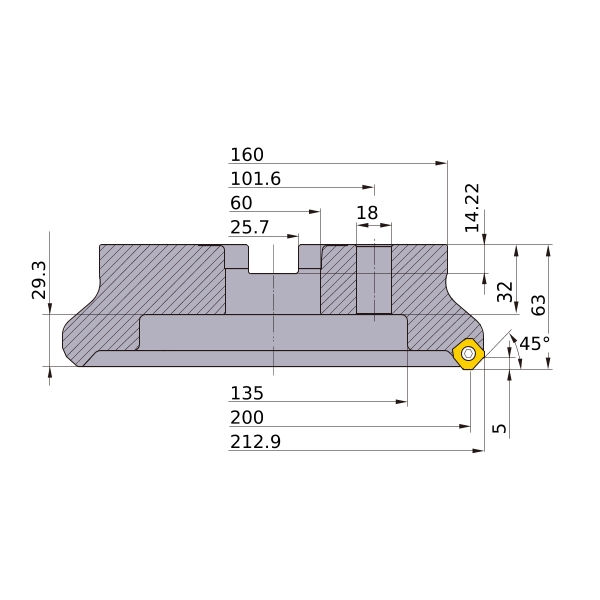

DC 200
DCX 212.9
DCON 60
DCSFMS 160
DAH 18
DCCB 135
KAPR 45°
L8 14.22
LF 63
CBDP 32
LCCB 29.3
KWW 25.7
APMX 5
GAMP -6°
GAMF -10°
WT 7.54
CRKS M16
DBC 101.6
Peripheral effective cutting edge count: ZEFP 8
2D Model (DXF)
CAD data name Download
WSX445-200C08NR
CAD

3D Detail Model (STP,STL)
CAD data name Download
WSX445-200C08NR
CAD

3D Light Model (STP,STL)
CAD data name RE Download
WSX445-200C08NR_MR1_2
1.2 CAD CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
