| Type |
Order Number |
Stock |
Dimensions(mm) |
Standard
Corner
Radius
Re(mm) |
Min. Cutting
Diameter
D1(mm) |
Insert Number |
CAD Data
Download |

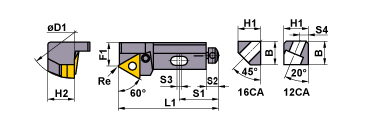

| H1 |
B |
L1 |
S1 |
S2 |
S3 |
S4 |
H2 |
F1 |
 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| PTTN |
PTTNR12CA16 |
 |
15.5 |
16 |
55 |
20 |
8 |
2 |
6 |
12 |
13 |
0.8 |
50 |
TNMA
TNMG
TNMM
TNGA
TNGG |
1604__ |
 |
| PTTNR16CA16 |
|
16 |
17 |
63 |
25 |
8 |
2.5 |
- |
16 |
15 |
0.8 |
60 |
1604__ |
|
|
| Stock |
|
: Inventory maintained in Japan. |
|
|
