MWS...DB DRILL

OPERATIONAL GUIDANCE FOR THE MWS...DB DRILL

FLAT FACE DRILLING

Drilling a blind hole

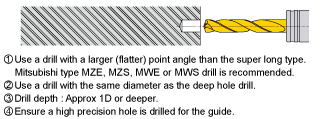

1. Drilling a pilot hole

2. Initial cutting with the long type drill

3. Drill the deep hole

4. Drill retraction

IRREGULAR FACE DRILLING

Drilling and breaking through on irregular faces or angles

1. Spot facing

3. Initial cutting with the long type drill

5. Breaking through

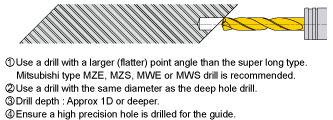

2. Drilling a pilot hole

4. Drill the deep hole

6. Drill retraction
