Bohrer >MPS1 >MPS1-0900-PC

Bohrer

MPS1
（4-Fasenbohrer）

MPS1-0900-PC

Produktinformationen

  • Neue PVD-Beschichtung auf AlTiCrN-Basis.
  • MPS 4-Fasen-Bohrer für präzises und prozesssicheres Bohren.
  • Alle Bohrer mit innerer Kühlmittelzufuhr.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Art   [Ausbreiten ]

Art   [Ausbreiten ]

Durchmesser (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name der Sorte Hartmetall
Sorte DP1021
Lager

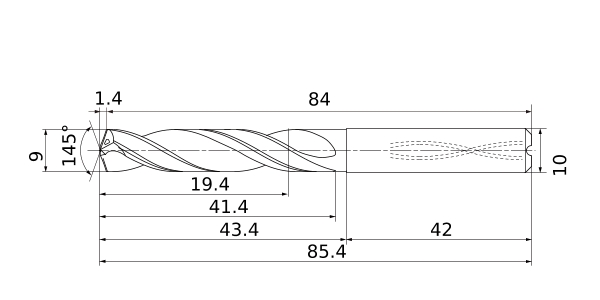

Längeneinheit M
DC 9
DCON 10
SIG 145°
LF 84
OAL 85.4
LH 43.4
LU 19.4
LCF 41.4
LS 42
FHA 27°
ld 2
PL 1.4
Effective Cutting Edge 2
Max. Toleranz für den Schneidkantendurchmesser 0.01
Min. Toleranz für den Schneidkantendurchmesser -0.005
Kühlmitteltyp Innen
2D Modell (DXF)
CAD Dateiname Download
MPS1-0900-PC
CAD
Disclaimer
Be sure to read the following before downloading the data or file you selected. Please understand that if you decide to proceed with the next step it will be at your own discretion and responsibility.


As far as allowed by law, Mitsubishi Materials Corporation shall not be held responsible in any way, either manifest or implied, including but not limited to legal warranty against defects, warranty of merchantability, warranty of fitness for a special purpose, or warranty against infringement of rights.Therefore, in the event that the above-stated download of the selected data or file results in the customer suffering a loss of data or damage to a computer or system, Mitsubishi Materials Corporation shall not be held in anyway responsible for said loss or damage. Further, the contents, including data and files, may be modified or terminated without notice, and Mitsubishi Materials Corporation does not warranty that any posted contents are error free.


If you agree to this disclaimer, please select “Agree” below.
Thank you for your understanding and cooperation.

3D Einfaches Modell (STP,STL)
CAD Dateiname Download
MPS1-0900-PC
CAD
Disclaimer
Be sure to read the following before downloading the data or file you selected. Please understand that if you decide to proceed with the next step it will be at your own discretion and responsibility.


As far as allowed by law, Mitsubishi Materials Corporation shall not be held responsible in any way, either manifest or implied, including but not limited to legal warranty against defects, warranty of merchantability, warranty of fitness for a special purpose, or warranty against infringement of rights.Therefore, in the event that the above-stated download of the selected data or file results in the customer suffering a loss of data or damage to a computer or system, Mitsubishi Materials Corporation shall not be held in anyway responsible for said loss or damage. Further, the contents, including data and files, may be modified or terminated without notice, and Mitsubishi Materials Corporation does not warranty that any posted contents are error free.


If you agree to this disclaimer, please select “Agree” below.
Thank you for your understanding and cooperation.
Show more

Lager

:Lagerstandard
:Kein Standard, Herstellung nur auf Anfrage.
:Lagerstandard Wird durch neue Produkte ersetzt.
:Lagerstandard in Japan.

  • Empfohlene Schnittmethode
